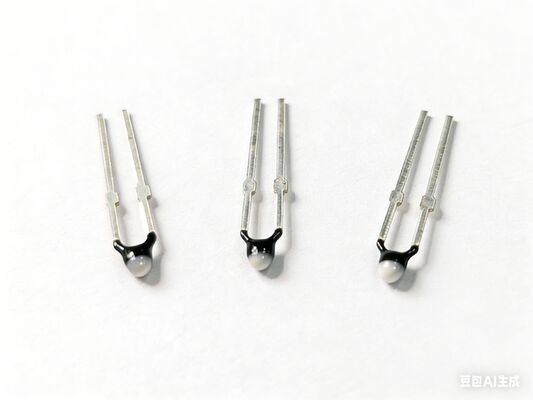

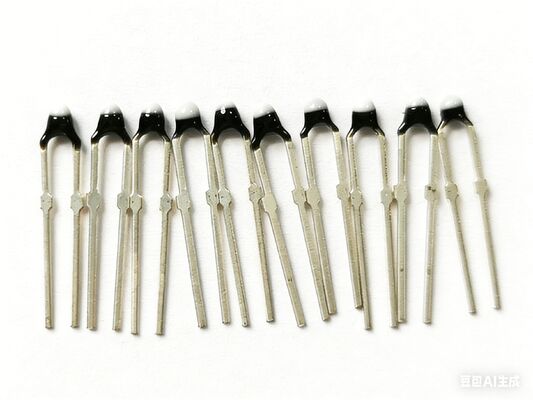

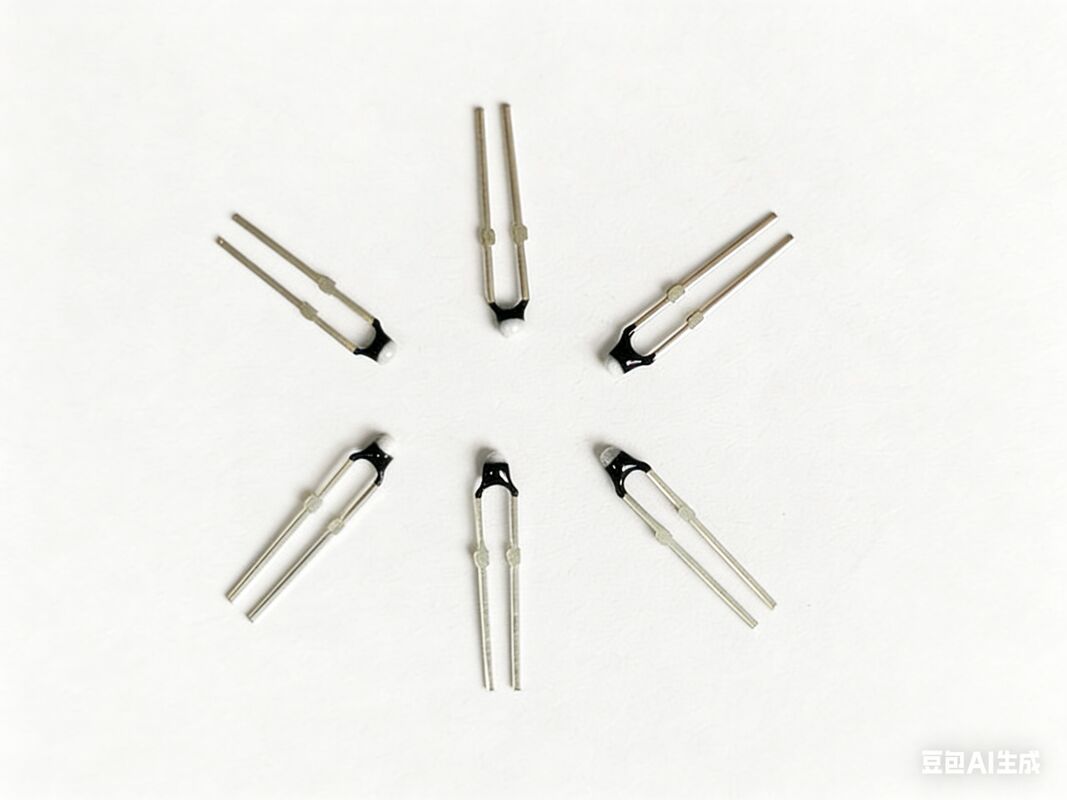

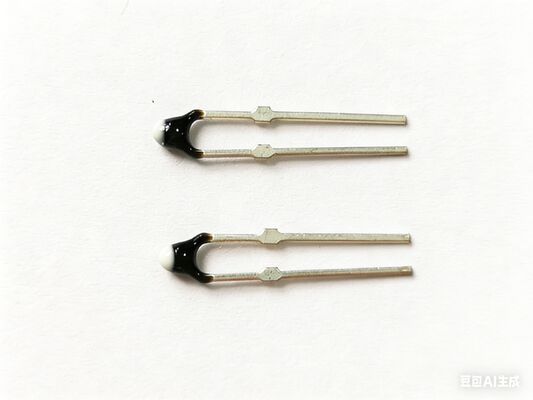

0.5 Tin Plated 42 Alloy Lead Wire Epoxy Thermistor
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | Hefei Minsing |
| Sertifikasi: | IATF16949/ISO9001/CE/RoHS |
| Nomor model: | MF5A-3T |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | 500 buah |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Dalam jumlah besar |
| Waktu pengiriman: | 2-10 hari kerja |
| Syarat-syarat pembayaran: | T/T |
| Menyediakan kemampuan: | 50 Juta Keping Per Tahun |
|
Informasi Detail |
|||
| Bahan kepala: | Epoksi | Kawat Timah: | 0,5 paduan timah berlapis 42 |
|---|---|---|---|
| Ukuran kepala: | Φ2.4×Φ3.7mm | Panjang kawat: | 17mm |
| R25℃: | 0,5KΩ-2000KΩ | nilai B: | 3000K-4500K |
| R Toleransi: | ±1%,±2%,±3%, ±5% | B toleransi: | ±0,5% hingga ±3% |
Deskripsi Produk

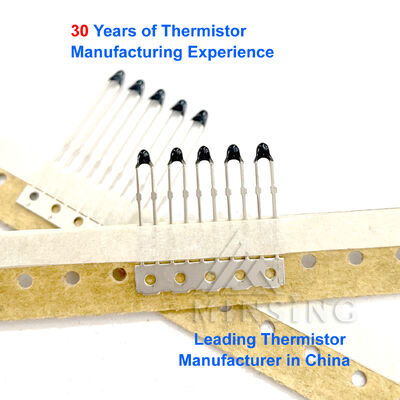

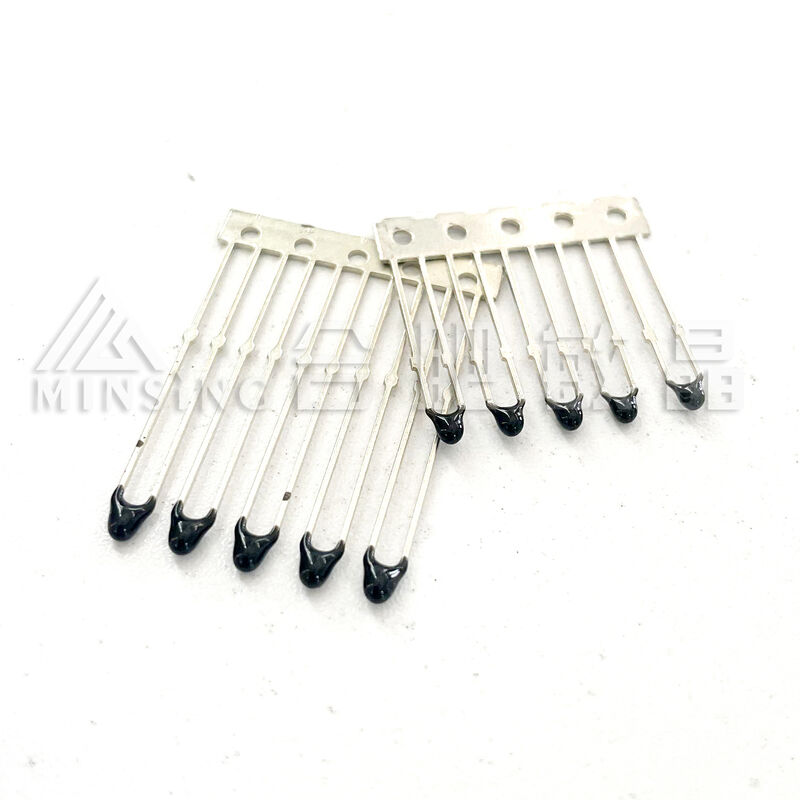

103AT-2 Series Epoxy Thermistor , 0.5 Tin Plated 42 Alloy Lead Wire with Tie Bar, Uniform Shape
Product Feature:
Uniform shape facilitates automated assembly / Long term reliability
Application:
Office automation, measuring instruments, controllers, mobile devices,battery chargers, battery packs,
fan motors, home electronics, HVAC equipment, solar systems, security, thermometers, automotive,
vending machines, refrigerated display cases, agricultural equipment
Caution:
• When bending the lead wires using for example a radio plier make sure to have a minimum distance from the
sensor head of 3 mm.
• Do not apply a mechanical load of more than 2 N in the way depicted in Fig. 1 below. The variation of the load
direction should be less then 0.3 mm (see Fig. 2).
